Implementing the Vision Transformer

In this notebook, we will implement the Vision Transformer and test it on the small CIFAR-10 dataset. The implementation builds on elements from notebook 2 “GptFromScratch”, so it is necessary to complete them in order.

We are based on the article An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale.

Here is the important figure from this article that we will implement step by step:

import torch
import torch.nn as nn
import torch.nn.functional as F
import torchvision.transforms as T
import torchvision.datasets as datasets
import matplotlib.pyplot as plt

# Detection automatique du GPU
device = "cpu"
if torch.cuda.is_available():
    device = "cuda"
print(f"using device: {device}")

using device: cpu

Reviewing Previous Code

First, we will review the code from notebook 2 of this course with some modifications.

Self-Attention Layer

If you recall, in notebook 2, we implemented the masked multi-head attention layer to train a transformer of the decoder type. For images, we want a transformer of the encoder type, so we need to change our implementation.

It’s quite simple: we had a multiplication by a lower triangular matrix to mask the “future” in the decoder. But in the encoder, we don’t want to mask the future, so we just need to remove this matrix multiplication.

Here is the adjusted Python code:

class Head_enc(nn.Module):
    """ Couche de self-attention unique """

    def __init__(self, head_size,n_embd,dropout=0.2):
        super().__init__()
        self.key = nn.Linear(n_embd, head_size, bias=False)
        self.query = nn.Linear(n_embd, head_size, bias=False)
        self.value = nn.Linear(n_embd, head_size, bias=False)
        self.dropout = nn.Dropout(dropout)

    def forward(self, x):
        B,T,C = x.shape
        k = self.key(x)   # (B,T,C)
        q = self.query(x) # (B,T,C)
        # Le * C**-0.5 correspond à la normalisation par la racine de head_size
        wei = q @ k.transpose(-2,-1) * C**-0.5 # (B, T, C) @ (B, C, T) -> (B, T, T)
        # On a supprimer le masquage du futur
        wei = F.softmax(wei, dim=-1) # (B, T, T)
        wei = self.dropout(wei)
        v = self.value(x) # (B,T,C)
        out = wei @ v # (B, T, T) @ (B, T, C) -> (B, T, C)
        return out

Multi-Head Self-Attention

To have multiple heads, we will simply reuse our class from notebook 2 but using Head_enc instead of Head:

class MultiHeadAttention(nn.Module):
    """ Plusieurs couches de self attention en parallèle"""

    def __init__(self, num_heads, head_size,n_embd,dropout):
        super().__init__()
        # Création de num_head couches head_enc de taille head_size
        self.heads = nn.ModuleList([Head_enc(head_size,n_embd,dropout) for _ in range(num_heads)])
        self.proj = nn.Linear(n_embd, n_embd)
        self.dropout = nn.Dropout(dropout)

    def forward(self, x):
        out = torch.cat([h(x) for h in self.heads], dim=-1)
        out = self.dropout(self.proj(out))
        return out

Feed Forward Layer

We also reuse our implementation of the feed forward layer, we just change the activation function from ReLU to GeLU as described in the article:

class FeedFoward(nn.Module):

    def __init__(self, n_embd,dropout):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(n_embd, 4 * n_embd),
            nn.GELU(),
            nn.Linear(4 * n_embd, n_embd),
            nn.Dropout(dropout),
        )

    def forward(self, x):
        return self.net(x)

Transformer Encoder Block

And finally, we can build our transformer encoder block corresponding to the one we see in the figure above:

class TransformerBlock(nn.Module):
    """ Block transformer"""

    def __init__(self, n_embd, n_head,dropout=0.):
        super().__init__()
        head_size = n_embd // n_head
        self.sa = MultiHeadAttention(n_head, head_size,n_embd,dropout)
        self.ffwd = FeedFoward(n_embd,dropout)
        self.ln1 = nn.LayerNorm(n_embd)
        self.ln2 = nn.LayerNorm(n_embd)

    def forward(self, x):
        x = x + self.sa(self.ln1(x))
        x = x + self.ffwd(self.ln2(x))
        return x

Note: Here, I went quickly over these layers as they were implemented in detail in notebook 2. I invite you to refer to it in case of any misunderstanding.

Network Implementation

We will now implement the network step by step.

Splitting the Image into Patches

The first step described in the article is the division of the image into patches:

Each image is divided into \(N\) patches of size \(p \times p\), then the patches are flattened. We go from an image dimension \(\mathbf{x} \in \mathbb{R}^{H \times W \times C}\) to a sequence of patches \(\mathbf{x}_p \in \mathbb{R}^{N \times (P^2 \cdot C)}\).

To achieve this, we will retrieve an image from the CIFAR-10 dataset as an example, which will allow us to visualize if our code works.

transform=T.ToTensor() # Pour convertir les éléments en tensor torch directement
dataset = datasets.CIFAR10(root='./../data', train=True, download=True,transform=transform)

Files already downloaded and verified

Let’s retrieve a simple image from this dataset for our tests:

image=dataset[0][0]
print(image.shape)
plt.imshow(dataset[0][0].permute(1,2,0).numpy())
plt.axis("off")
plt.show()

torch.Size([3, 32, 32])

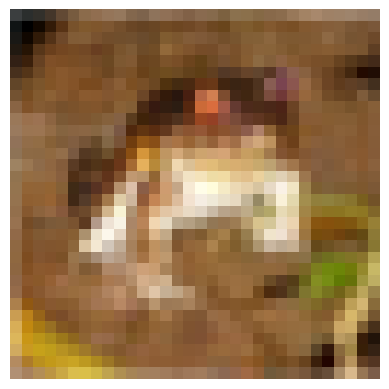

A beautiful frog!

To choose the dimension of a patch, we need to take a dimension divisible by 32. Let’s take \(8 \times 8\) for example, which will give us 16 patches. Let’s leave this value as a parameter that we can choose.

At first, one might think that we need to loop twice over the width and height, retrieving a patch each time in this way:

patch_size = 8
list_of_patches = []
for i in range(0,image.shape[1],patch_size):
    for j in range(0,image.shape[2],patch_size):
        patch=image[:,i:i+patch_size,j:j+patch_size]
        list_of_patches.append(patch)
tensor_patches = torch.stack(list_of_patches)
print(tensor_patches.shape)

torch.Size([16, 3, 8, 8])

This is not efficient in terms of code. With PyTorch, we can actually do it much more simply with view() and unfold(). This step is a bit complicated but necessary for memory continuity reasons so that the view() function works correctly. Simply doing patches = image.view(-1, C, patch_size, patch_size) would not work (you can try to verify this).

C,H,W = image.shape
# On utilise la fonction unfold pour découper l'image en patch contigus
# Le premier unfold découpe la première dimension (H) en ligne
# Le deuxième unfold découpe chacune des lignes en patch_size colonnes
# Ce qui donne une image de taille (C, H//patch_size, W//patch_size,patch_size, patch_size)
patches = image.unfold(1, patch_size, patch_size).unfold(2, patch_size, patch_size)
# Permute pour avoir les dimensions dans le bon ordre
patches = patches.permute(1, 2, 0, 3, 4).contiguous()
patches = patches.view(-1, C, patch_size, patch_size)
print(patches.shape)
# On peut vérifier que ça fait bien la même chose
print((patches==tensor_patches).all())

torch.Size([16, 3, 8, 8])
tensor(True)

Now, we will flatten our patches to get our final result.

nb_patches = patches.shape[0]
print(nb_patches)
patches_flat = patches.flatten(1, 3)
print(patches_flat.shape)

16
torch.Size([16, 192])

Let’s define a function to perform these transformations:

# La fonction a été modifiée pour prendre en compte le batch
def image_to_patches(image, patch_size):
    # On rajoute une dimension pour le batch
    B,C,_,_ = image.shape
    patches = image.unfold(2, patch_size, patch_size).unfold(3, patch_size, patch_size)
    patches = patches.permute(0,2, 3, 1, 4, 5).contiguous()
    patches = patches.view(B,-1, C, patch_size, patch_size)
    patches_flat = patches.flatten(2, 4)
    return patches_flat

There we are! The first step is complete :)

Linear Projection of Patches

It’s time to move on to the second step, which is the linear projection of the patches into a latent space.

This step is equivalent to the step of converting tokens using the embedding table. This time, we will convert our flattened patches into vectors of fixed dimension so that these vectors can be processed by the transformer. Let’s define our embedding dimension and our projection layer:

n_embd = 64
proj_layer = nn.Linear(C*patch_size*patch_size, n_embd)

That’s all, it’s not the most complicated step.

Position Embedding and Class Token

Let’s move on to the final step before the transformer layers (which are already implemented).

This step actually contains 2 distinct steps:

• Adding a position embedding: like in GPT, the transformer has no prior information about the position of the patch in the image. For this, we will simply add an embedding dedicated to this, which will allow the network to have a notion of the relative position of the patches.

• Adding a class token: This step is new as it was not necessary in GPT. The idea actually comes from BERT and is a technique for performing classification using a transformer without having to specify a fixed sequence size. Without a class token, to obtain our classification, we would need either to attach a fully connected network to all the outputs of the transformer (which would impose a fixed sequence size), or to attach a fully connected network to an output of the transformer chosen at random (an output corresponds to a patch, but then how to choose this patch without bias?). Adding the class token allows us to address this problem by adding a token specifically dedicated to classification.

Note: For CNNs, a way to avoid the problem of the fixed input dimension is to use global average pooling at the output (a pooling layer with a fixed output size). This technique can also be used for a vision transformer instead of the class token.

# Pour le positional encoding, +1 pour le cls token
pos_emb = nn.Embedding(nb_patches+1, n_embd)
# On ajoute un token cls
cls_token = torch.zeros(1, 1, n_embd)
# On ajoutera ce token cls au début de chaque séquence

Fully Connected Classification Network

Now, let’s move on to the end of the ViT, i.e., the MLP classification network. If you have followed the interest of the class token, you understand that this classification network takes as input only this token to output the predicted class.

Once again, it’s a fairly simple implementation. In the article, they say they use a network with one hidden layer for training and only one layer for fine-tuning (see course 10 for details on fine-tuning). For simplicity, we use a single linear layer to project the output class token into the dimension of the number of classes.

classi_head = nn.Linear(n_embd, 10)

We now have all the elements to build our ViT and train it!

Creating the ViT Model

We can now gather the pieces and create our vision transformer.

class ViT(nn.Module):
    def __init__(self, n_embed,patch_size,C,n_head,n_layer,nb_patches,dropout=0.) -> None:
        super().__init__()
        self.proj_layer = nn.Linear(C*patch_size*patch_size, n_embed)
        self.pos_emb = nn.Embedding(nb_patches+1, n_embed)
        # Permet de créer cls_token comme un paramètre du réseau
        self.register_parameter(name='cls_token', param=torch.nn.Parameter(torch.zeros(1, 1, n_embed)))
        self.transformer=nn.Sequential(*[TransformerBlock(n_embed, n_head,dropout) for _ in range(n_layer)])
        self.classi_head = nn.Linear(n_embed, 10)

    def forward(self,x):
        B,_,_,_=x.shape
        # On découpe l'image en patch et on les applatit
        x = image_to_patches(x, patch_size)
        # On projette dans la dimension n_embed
        x = self.proj_layer(x)
        # On ajoute le token cls
        cls_tokens = self.cls_token.expand(B, -1, -1)
        x = torch.cat((cls_tokens, x), dim=1)
        # On ajoute le positional encoding
        pos_emb = self.pos_emb(torch.arange(x.shape[1], device=x.device))
        x = x + pos_emb
        # On applique les blocks transformer
        x = self.transformer(x)
        # On récupère le token cls
        cls_tokens = x[:, 0]
        # On applique la dernière couche de classification
        x = self.classi_head(cls_tokens)
        return x

Training Our ViT

We will train our ViT model on the CIFAR-10 dataset. Note that the parameters we have defined are suitable for small-sized images (n_embed and patch_size). To process larger images, we will need to adapt these parameters. The code works with different sizes as long as the image size is divisible by the patch size.

Loading the Datasets: Train, Validation, and Test

Let’s load the CIFAR-10 dataset and create our dataloaders:

Note: You can select a subset of the dataset to speed up training.

classes = ('plane', 'car', 'bird', 'cat','deer', 'dog', 'frog', 'horse', 'ship', 'truck')
# Transformation des données, normalisation et transformation en tensor pytorch
transform = T.Compose([T.ToTensor(),T.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])

# Téléchargement et chargement du dataset
dataset = datasets.CIFAR10(root='./../data', train=True,download=True, transform=transform)
testdataset = datasets.CIFAR10(root='./../data', train=False,download=True, transform=transform)
print("taille d'une image : ",dataset[0][0].shape)


#Création des dataloaders pour le train, validation et test
train_dataset, val_dataset=torch.utils.data.random_split(dataset, [0.8,0.2])
print("taille du train dataset : ",len(train_dataset))
print("taille du val dataset : ",len(val_dataset))
print("taille du test dataset : ",len(testdataset))
train_loader = torch.utils.data.DataLoader(train_dataset, batch_size=16,shuffle=True, num_workers=2)
val_loader= torch.utils.data.DataLoader(val_dataset, batch_size=16,shuffle=True, num_workers=2)
test_loader = torch.utils.data.DataLoader(testdataset, batch_size=16,shuffle=False, num_workers=2)

Files already downloaded and verified
Files already downloaded and verified
taille d'une image :  torch.Size([3, 32, 32])
taille du train dataset :  40000
taille du val dataset :  10000
taille du test dataset :  10000

Hyperparameters and Model Creation

We will now define our training hyperparameters and the specifics of the model:

patch_size = 8
nb_patches = (32//patch_size)**2
n_embed = 64
n_head = 4
n_layer = 4
epochs = 10
C=3 # Nombre de canaux
lr = 1e-3
model = ViT(n_embed,patch_size,C,n_head,n_layer,nb_patches).to(device)
optimizer = torch.optim.Adam(model.parameters(), lr=lr)

Model Training

It’s finally time to train our model!

for epoch in range(epochs):
    model.train()
    loss_train = 0
    for i, (images, labels) in enumerate(train_loader):
        images, labels = images.to(device), labels.to(device)
        optimizer.zero_grad()
        output = model(images)
        loss = F.cross_entropy(output, labels)
        loss_train += loss.item()
        loss.backward()
        optimizer.step()

    model.eval()
    correct = 0
    total = 0
    loss_val = 0
    with torch.no_grad():
        for images, labels in val_loader:
            images, labels = images.to(device), labels.to(device)
            outputs = model(images)
            loss_val += F.cross_entropy(outputs, labels).item()
            _, predicted = torch.max(outputs.data, 1)
            total += labels.size(0)
            correct += (predicted == labels).sum().item()

    print(f"Epoch {epoch}, loss train {loss_train/len(train_loader)}, loss val {loss_val/len(val_loader)},précision {100 * correct / total}")

Epoch 0, loss train 1.6522698682546615, loss val 1.4414834783554078,précision 47.97
Epoch 1, loss train 1.3831321718215943, loss val 1.3656272639274598,précision 50.69
Epoch 2, loss train 1.271412028503418, loss val 1.2726070711135864,précision 55.17
Epoch 3, loss train 1.1935315937042237, loss val 1.2526390438556672,précision 55.52
Epoch 4, loss train 1.1144725002408027, loss val 1.2377954412460328,précision 55.66
Epoch 5, loss train 1.0520227519154548, loss val 1.2067877051830291,précision 56.82
Epoch 6, loss train 0.9839000009179115, loss val 1.2402711957931518,précision 56.93
Epoch 7, loss train 0.9204218792438507, loss val 1.2170260044574737,précision 58.23
Epoch 8, loss train 0.853291154640913, loss val 1.2737546770095824,précision 57.65
Epoch 9, loss train 0.7962572723925113, loss val 1.2941821083545684,précision 58.26

The training went well, we achieve an accuracy of 58% on the validation data. Let’s now look at our results on the test data:

The accuracy is of the same order on the test data!

Note: This result may seem quite mediocre, but we must not forget that we are using a small transformer trained on few epochs. You can try to improve this result by adjusting the hyperparameters.

Note2: The authors of the paper specify that the transformer does not have an “inductive bias” on images unlike CNNs, and this comes from the architecture. The layers of a CNN are invariant to translation and capture the neighborhood of each pixel, while transformers primarily use global information. In practice, it is observed that on “small” datasets (up to 1 million images), CNNs perform better, but for larger amounts of data, transformers are more efficient.

model.eval()
correct = 0
total = 0
with torch.no_grad():
    for images, labels in test_loader:
        images, labels = images.to(device), labels.to(device)
        outputs = model(images)
        _, predicted = torch.max(outputs.data, 1)
        total += labels.size(0)
        correct += (predicted == labels).sum().item()

print(f"Précision {100 * correct / total}")

Précision 58.49

La précision est du même ordre sur les données de test !

Note : Ce résultat peut paraître assez médiocre, mais il ne faut pas oublier qu’on utilise un petit transformer entraîné sur peu d’epochs. Vous pouvez essayer d’améliorer ce résultat en jouant sur les hyperparamètres.

Note2 : Les auteurs du papier précisent que le transformer n’a pas de “inductive bias” sur les images contrairement aux CNN, et cela provient de l’architecture. Les couches d’un CNN sont invariantes par translation et capturent le voisinage de chaque pixel, tandis que les transformers utilisent principalement l’information globale. En pratique, on constate que sur des “petits” datasets (jusqu’à 1 million d’images), les CNN performent mieux, mais pour des plus grosses quantités de données, les transformers sont plus performants.
