使用 PyTorch 进行迁移学习

为了展示迁移学习的优势，我们将使用一个包含蚂蚁和蜜蜂图像的小型数据集。目标是训练一个模型，判断图片中的昆虫是蚂蚁还是蜜蜂。本代码参考了 PyTorch 的微调示例。 你可以点击此链接下载数据集。

import torch
import torch.nn as nn
import torch.optim as optim
import numpy as np
import torchvision
from torchvision import datasets, models, transforms
import matplotlib.pyplot as plt
import os

device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")

数据集

首先，我们加载数据集：

# Transformation des données
transforms = transforms.Compose([
        transforms.Resize(256),
        transforms.CenterCrop(224),
        transforms.ToTensor(),
        transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225]) # moyenne et ecart type utilisé pour le pre-entrainement
    ])

# Chemin vers les données
data_dir = '../data/hymenoptera_data'

train_data = datasets.ImageFolder(os.path.join(data_dir, 'train'), transforms)
val_data= datasets.ImageFolder(os.path.join(data_dir, 'val'), transforms)

train_loader = torch.utils.data.DataLoader(train_data, batch_size=4,shuffle=True, num_workers=4)
val_loader = torch.utils.data.DataLoader(val_data, batch_size=4,shuffle=True, num_workers=4)


class_names = train_data.classes
print("Classes du dataset : ",class_names)

print("Nombre d'images d'entrainement : ",len(train_data))
print("Nombre d'images de validation : ",len(val_data))

Classes du dataset :  ['ants', 'bees']
Nombre d'images d'entrainement :  244
Nombre d'images de validation :  153

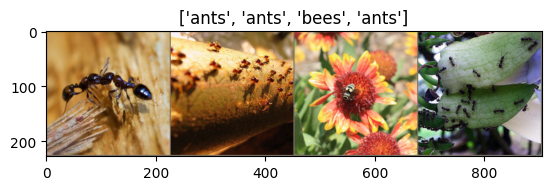

如你所见，我们只有很少的图像。可以可视化数据集中的一些样本：

def imshow(inp, title=None):
    inp = inp.numpy().transpose((1, 2, 0))
    mean = np.array([0.485, 0.456, 0.406])
    std = np.array([0.229, 0.224, 0.225])
    inp = std * inp + mean
    inp = np.clip(inp, 0, 1)
    plt.imshow(inp)
    plt.title(title)

inputs, classes = next(iter(train_loader))

out = torchvision.utils.make_grid(inputs)

imshow(out, title=[class_names[x] for x in classes])

该数据集看起来比较复杂，因为有时候昆虫在图片中所占的比例非常小。

模型构建

在模型构建中，我们使用 ResNet18 架构，它轻量且在分类问题上表现优异。

class modified_resnet18(nn.Module):
  def __init__(self,weights=None,out_class=2):
    super(modified_resnet18, self).__init__()
    # On charge le modèle pré-entrainé. Si weights=None, on charge le modèle sans les poids pré-entrainés
    self.resnet18 = models.resnet18(weights=weights)
    # On remplace la dernière couche du modèle pour correspondre au nombre de classes de notre problème
    self.resnet18.fc = nn.Linear(512, out_class)

  def forward(self,x):
    return self.resnet18(x)

不使用迁移学习的训练

首先，我们尝试从零开始训练模型。

model = modified_resnet18(weights=None,out_class=len(class_names)) #weights=None pour charger le modèle sans les poids pré-entrainés
model = model.to(device)

lr=0.001
epochs=10

criterion = nn.CrossEntropyLoss()
optimizer_ft = optim.SGD(model.parameters(), lr=lr)

for epoch in range(epochs):
  loss_train=0
  for inputs, labels in train_loader:
    inputs, labels = inputs.to(device), labels.to(device)
    optimizer_ft.zero_grad()
    outputs = model(inputs)
    loss = criterion(outputs, labels)
    loss.backward()
    optimizer_ft.step()
    loss_train+=loss.item()


  model.eval()
  with torch.no_grad():
    loss_val=0
    for inputs, labels in val_loader:
      inputs, labels = inputs.to(device), labels.to(device)
      outputs = model(inputs)
      loss = criterion(outputs, labels)
      loss_val+=loss.item()
    print(f"Epoch {epoch+1}/{epochs} : train loss : {loss_train/len(train_loader)} val loss : {loss_val/len(val_loader)}")

Epoch 1/10 : train loss : 0.7068140135436761 val loss : 0.6533934359367077
Epoch 2/10 : train loss : 0.7156724578044453 val loss : 0.7215747200907805
Epoch 3/10 : train loss : 0.6751646028190362 val loss : 0.6428722785069392
Epoch 4/10 : train loss : 0.5965930917223946 val loss : 0.7239674238058237
Epoch 5/10 : train loss : 0.6105695530527928 val loss : 0.5773208579764917
Epoch 6/10 : train loss : 0.5515003006477825 val loss : 0.8412383454732406
Epoch 7/10 : train loss : 0.5839061943478272 val loss : 0.6010858137638141
Epoch 8/10 : train loss : 0.5389361244733216 val loss : 0.6349012469634031
Epoch 9/10 : train loss : 0.5367097518727427 val loss : 0.5850474796234033
Epoch 10/10 : train loss : 0.5234740852821068 val loss : 0.782087844151717

我们计算验证集上的准确率：

correct = 0
total = 0
with torch.no_grad():
    for inputs, labels in val_loader:
        inputs, labels = inputs.to(device), labels.to(device)
        outputs = model(inputs)
        _, predicted = torch.max(outputs, 1)
        total += labels.size(0)
        correct += (predicted == labels).sum().item()
print('Précision sur les images de validation: %d %%' % (100 * correct / total))

Précision sur les images de validation: 58 %

准确率非常低（随机模型的准确率约为 50%）。..

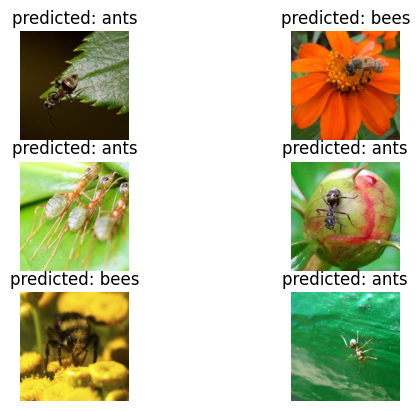

我们可以可视化模型的预测结果：

def visualize_model(model, num_images=6):
    model.eval()
    images_so_far = 0
    with torch.no_grad():
        for i, (inputs, labels) in enumerate(val_loader):
            inputs = inputs.to(device)
            labels = labels.to(device)
            outputs = model(inputs)
            _, preds = torch.max(outputs, 1)

            for j in range(inputs.size()[0]):
                images_so_far += 1
                ax = plt.subplot(num_images//2, 2, images_so_far)
                ax.axis('off')
                ax.set_title(f'predicted: {class_names[preds[j]]}')
                imshow(inputs.cpu().data[j], title=f'predicted: {class_names[preds[j]]}')

                if images_so_far == num_images:
                    return
visualize_model(model)

可以看到模型的表现非常差。这并不奇怪，因为我们只有很少的图像。若要从零开始训练一个性能良好的模型，我们需要更多的图像，尤其是对于一个较深的模型来说。

使用迁移学习的训练

现在我们来看看使用迁移学习能取得什么效果。与之前的代码相比，唯一的变化是模型的 weights 参数（希望结果也能有所改善）。

model = modified_resnet18(weights='IMAGENET1K_V1',out_class=len(class_names)) #On charge les poids pré-entrainés sur ImageNet
model = model.to(device)

lr=0.001
epochs=10

criterion = nn.CrossEntropyLoss()
optimizer_ft = optim.SGD(model.parameters(), lr=lr)

for epoch in range(epochs):
  loss_train=0
  for inputs, labels in train_loader:
    inputs, labels = inputs.to(device), labels.to(device)
    optimizer_ft.zero_grad()
    outputs = model(inputs)
    loss = criterion(outputs, labels)
    loss.backward()
    optimizer_ft.step()
    loss_train+=loss.item()


  model.eval()
  with torch.no_grad():
    loss_val=0
    for inputs, labels in val_loader:
      inputs, labels = inputs.to(device), labels.to(device)
      outputs = model(inputs)
      loss = criterion(outputs, labels)
      loss_val+=loss.item()
    print(f"Epoch {epoch+1}/{epochs} : train loss : {loss_train/len(train_loader)} val loss : {loss_val/len(val_loader)}")

Epoch 1/10 : train loss : 0.6442642182600303 val loss : 0.5642786813087952
Epoch 2/10 : train loss : 0.30489559746423706 val loss : 0.26585672435183555
Epoch 3/10 : train loss : 0.10015173801831657 val loss : 0.22248221815635377
Epoch 4/10 : train loss : 0.03893961609325937 val loss : 0.23963456177481043
Epoch 5/10 : train loss : 0.017503870887773446 val loss : 0.21813779352352214
Epoch 6/10 : train loss : 0.011329375068107467 val loss : 0.24817544420903476
Epoch 7/10 : train loss : 0.008011038282496824 val loss : 0.22638171303939694
Epoch 8/10 : train loss : 0.005813347443854284 val loss : 0.2239722229714971
Epoch 9/10 : train loss : 0.004845750937047491 val loss : 0.23538081515699816
Epoch 10/10 : train loss : 0.003927258039885735 val loss : 0.24088036894728504

我们计算验证集上的准确率：

correct = 0
total = 0
with torch.no_grad():
    for inputs, labels in val_loader:
        inputs, labels = inputs.to(device), labels.to(device)
        outputs = model(inputs)
        _, predicted = torch.max(outputs, 1)
        total += labels.size(0)
        correct += (predicted == labels).sum().item()
print('Précision sur les images de validation: %d %%' % (100 * correct / total))

Précision sur les images de validation: 91 %

结果完全不同。通过使用预训练权重，准确率从 58% 提升到了 91%。

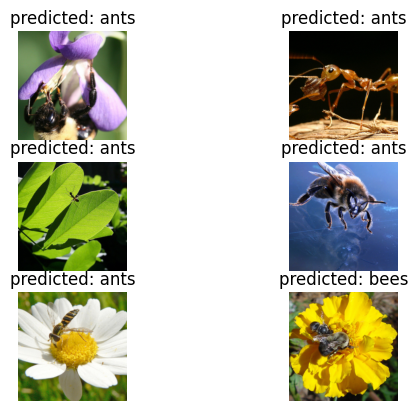

我们可以再次可视化模型的预测结果：

visualize_model(model)

效果好多了！希望本课程能让你体会到迁移学习的强大之处！
